LED Strip • 56 LEDs/m • 24V • 6W • 4000K • IP20 • 690lm • 8mm • CRI92

LED Strip • 56 LEDs/m • 24V • 6W • 4000K • IP20 • 690lm • 8mm • CRI92

79,00 RON

Dimmable / YES
6 W / m
24 V DC
115-125 lm / W
Cutting section of 7 LEDs 125mm
FPC 2oz 8mm
Ra> 92
Lifetime 50000h L70
Roll length 5m

Unavailable at the moment

Delivery date: 24 hours

Product Code: EDT-56-NW-24 Do you need help? 0773802313

Add to wishlist

LIVRARE RAPIDA PRIN CURIER 24H

CONSULTANTA

Disponibilitate Mai mult de 95% din produse sunt întotdeauna în stoc

Description
Characteristics
Reviews (0)

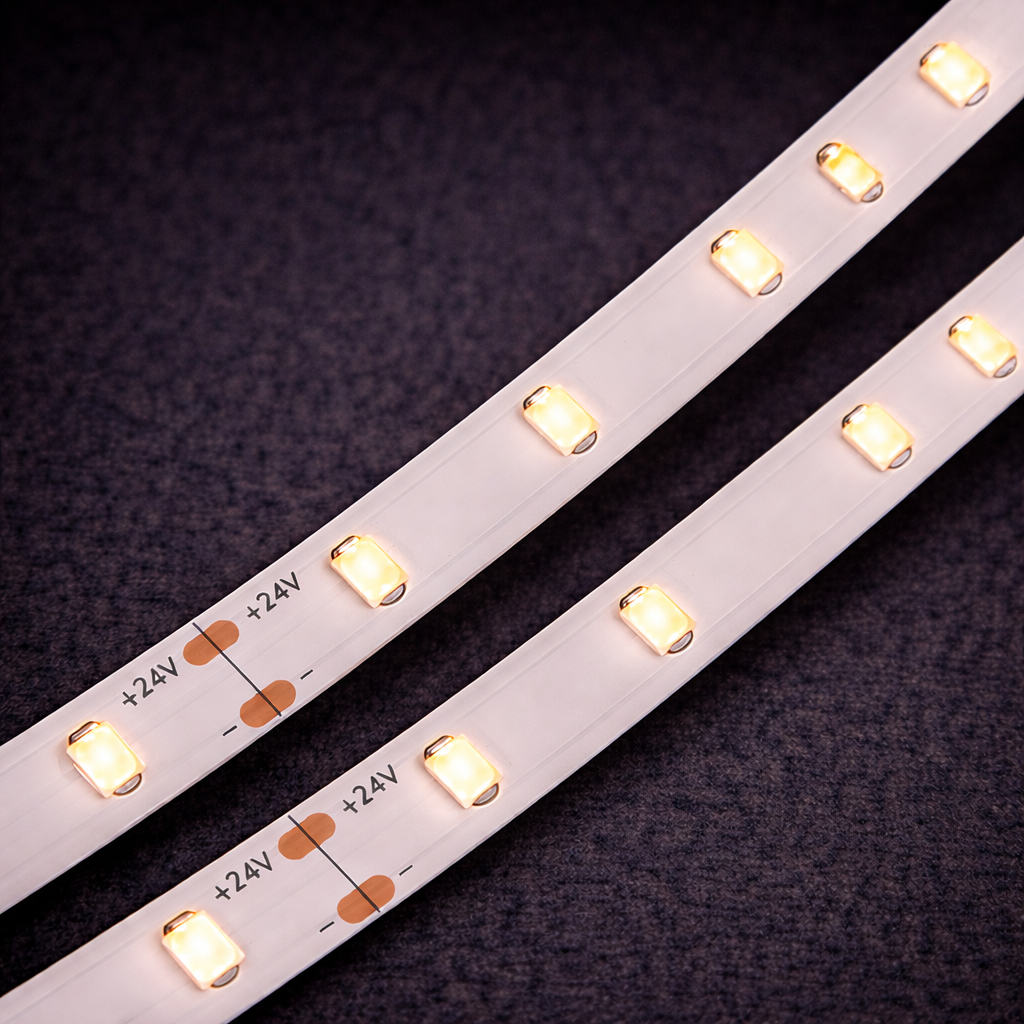

PROFESSIONAL LED STRIP 24V 6W/M 56LED/M - NEUTRAL WHITE 4000K

The 2835 56LED/M 24V IP20 LED strip is one of the high-performance LED strip models available in our range. It emits a high luminous flux of 690 lumens per meter with low energy consumption. It has a high luminous efficiency of 125 lm/W.

We ensure that the LED strips in our offer are built with carefully selected diodes. The LEDs mounted on the strips are selected mainly based on identical parameters, such as color temperature, chromaticity, and voltage. Our LED strips have a very good color deviation ratio (3 SDCM). Correct selection of the LEDs guarantees that the resulting LED strip does not have discoloration caused by improper LED selection and creates a uniform light of the same shade along the entire length. The process of selecting diodes with identical parameters is called "BINning."

We also ensure that when you place an order, you receive LED strips only from the same BIN. With the continuous development of LED technology and for technological reasons, the BIN changes from time to time, so if your lighting setup requires identical and uniform light, you should make sure that the LED strips come from the same order. Each LED strip should also be marked with codes on the packaging, which allow us to identify whether a particular production batch is based on the same LED batch. Due to the selection of suitable components and their high quality, attention to detail, and precision during construction, a 3-year warranty is provided for the LED strips.

For proper operation, as well as for the adequate lifespan of the LED strip, its construction is also crucial. In addition to the important selection of LEDs and resistors, an important element is the FPC substrate. The LED strips in our offer use only a double layer of copper in the FPC substrate of appropriate thickness, which reduces voltage drops over longer sections of LED strips and allows for more efficient heat dissipation.

On the copper layers, both top and bottom, a protective white layer is used. After that, the appropriate markings are placed on this layer and LEDs with resistors are mounted. Each of the LED strips is equipped on the bottom layer with double-sided tape from the renowned company 3M. The double-sided tape allows for simple and durable surface mounting. Depending on the model of the LED strip, the appropriate coverings are placed on the top side to achieve proper insulation.

Power supply voltage: 24V DC
Power: 6W/m
Luminous flux: 690 lm/m
PCB width: 8 mm
Number of LEDs: 56 LEDs/m
Protection class: IP20
Color temperature: 4000K - Neutral White
Color rendering index: CRI> 92Ra
Operating temperature: -20°C to +50°C
Warranty: 3 years
Certificates: CE, RoHS
Cutting section: every 7 LEDs, 125mm
PCB thickness: double-sided
Lifespan: 50,000 hours

Numar Leduri: 56led/m

Putere: 6w/m

Grad De Protectie: Ip20

Temperatura K: 4000K

Cu Banda Adeziva: Da

Consum De Energie - Alb [Kw/1000h: 6

Consum Putere Standby [W: 0.0

NumăRul Minim De Cicluri Pornit/Oprit: 50000

Unghi Fascicul [°: 120

Sursă De Lumină Cu Posibilitatea SchimbăRii Culorii Luminii (Ctls): Nu

Inaltime [Mm: 1.4

Latime [Mm: 8

Lungime [Mm: 5000

Flux Luminos - Alb [Lm: 690

Durata De Viață Nominală L70/B50 La 25°C [H: 50000

Indicele Minim De Redare A Culorilor Cri: 92

Cod Produs: EDT-56-NW-24

Tensiune De Iesire [V: 24V

Model: Banda

Reglabil: Da

Putere Pentru Alb [W: 6

Indicele Maxim De Redare A Culorilor Cri: 92

Indicele De Redare A Culorilor Cri: 92
