LED Strip • 238 LEDs/m • 24V • 22W • 3000K • IP20 • 2420lm • 10mm • CRI92

LED Strip • 238 LEDs/m • 24V • 22W • 3000K • IP20 • 2420lm • 10mm • CRI92

219,00 RON

Dimmable / YES
22 W / m
24 V DC
115-125 lm / W
Cutting section of 7 LEDs 29.4mm
FPC 3oz 10mm
Ra> 92
Lifespan 50000h L70
Roll length 5m

102 In stock

Delivery date: 24 hours

Stock limit

Add to cart

Product Code: EDT-238-WW-24 Do you need help? 0773802313

Add to wishlist

LIVRARE RAPIDA PRIN CURIER 24H

CONSULTANTA

Disponibilitate Mai mult de 95% din produse sunt întotdeauna în stoc

Description
Characteristics
Reviews (0)

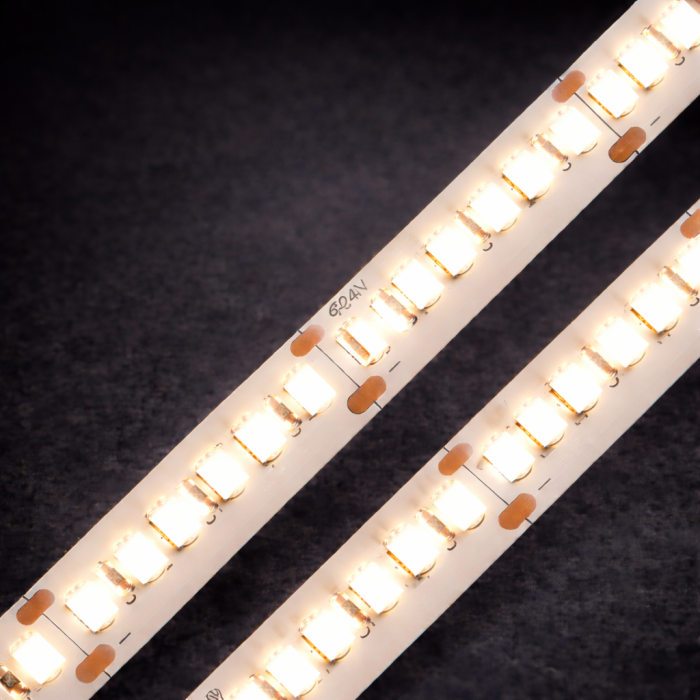

PROFESSIONAL LED STRIP 24V 22W/M 238LED/M - WARM WHITE 3000K

The 2835 LED strip 234LED/M 24V IP20 is one of the high-performance LED strip models available in our range. It emits a high luminous flux of 2420 lumens per meter with low energy consumption. It has a high luminous efficiency of 125 lm/W. An additional feature of this strip is the ability to achieve an almost uniform light line due to the high LED density.

We especially recommend it for interior design, particularly in places where efficient and powerful lighting is needed, creating a continuous line, and for clients who appreciate quality workmanship.

We ensure that the LED strips in our offer are built on carefully selected diodes. The LEDs mounted on the LED strips are primarily selected based on identical parameters, such as color temperature, chromaticity, and voltage. Our LED strips have a very good color deviation ratio (3 SDCM). Proper selection of LEDs ensures that the resulting LED strip does not have discolorations caused by inadequate LED selection and creates uniform light of the same shade along its entire length. The process of selecting diodes with identical parameters is called 'BINning.'

We also ensure that when you place an order, you receive LED strips only from the same BIN. With the continuous development of LED technology and for technological reasons, the BIN changes from time to time, so if your lighting setup requires identical and uniform light, you should make sure that the LED strips come from the same order. Each LED strip should also be marked with codes on the packaging, which allow us to identify whether a particular production batch is based on the same LED batch.

Due to the selection of suitable components and their high quality, attention to detail, and precision during construction, a 3-year warranty is provided for the LED strips.
For proper operation, as well as for the adequate lifespan of the LED strip, its construction is also crucial. In addition to the important selection of LEDs and resistors, the FPC substrate is also an important element. The LED strips in our offer use only a double layer of copper in the FPC substrate of appropriate thickness, which reduces voltage drops over longer sections of LED strips and allows for more efficient heat dissipation.

On the copper layers, both top and bottom, a protective white layer is used. After that, the corresponding markings are placed on this layer, and LEDs with resistors are mounted. Each of the LED strips is equipped on the bottom layer with double-sided tape from the renowned company 3M. The double-sided tape allows for simple and durable mounting on surfaces. Depending on the LED strip model, suitable coverings are placed on the top side to achieve proper insulation.

Power supply voltage: 24V DC
Power: 22W/m
Luminous flux: 2420lm/m
PCB width: 10 mm
LED quantity: 238 LEDs/m
Protection class: IP20
Color temperature: 3000K - Warm White
Color rendering index: CRI> 92Ra
Operating temperature: -20°C to +50°C
Warranty: 3 years
Certificates: CE, RoHS
Cutting section: every 7 LEDs, 29.4mm
PCB thickness: double-sided
Lifespan: 50,000 hours

Model: Banda

Cod Produs: EDT238-WW-24

Numar Leduri: 238led/m

Putere: 22w/m

Grad De Protectie: Ip20

Temperatura K: 3000K

Cu Banda Adeziva: Da

Consum De Energie - Alb [Kw/1000h: 22

Consum Putere Standby [W: 0.0

NumăRul Minim De Cicluri Pornit/Oprit: 50000

Sursă De Lumină Cu Posibilitatea SchimbăRii Culorii Luminii (Ctls): Nu

Unghi Fascicul [°: 120

Inaltime [Mm: 1.4

Latime [Mm: 10

Flux Luminos - Alb [Lm: 2420

Lungime [Mm: 5000

Durata De Viață Nominală L70/B50 La 25°C [H: 50000

Indicele Minim De Redare A Culorilor Cri: 92

Tensiune De Iesire [V: 24V

Reglabil: Da

Putere Pentru Alb [W: 22w/m

Indicele Maxim De Redare A Culorilor Cri: 92

Indicele De Redare A Culorilor Cri: 92
